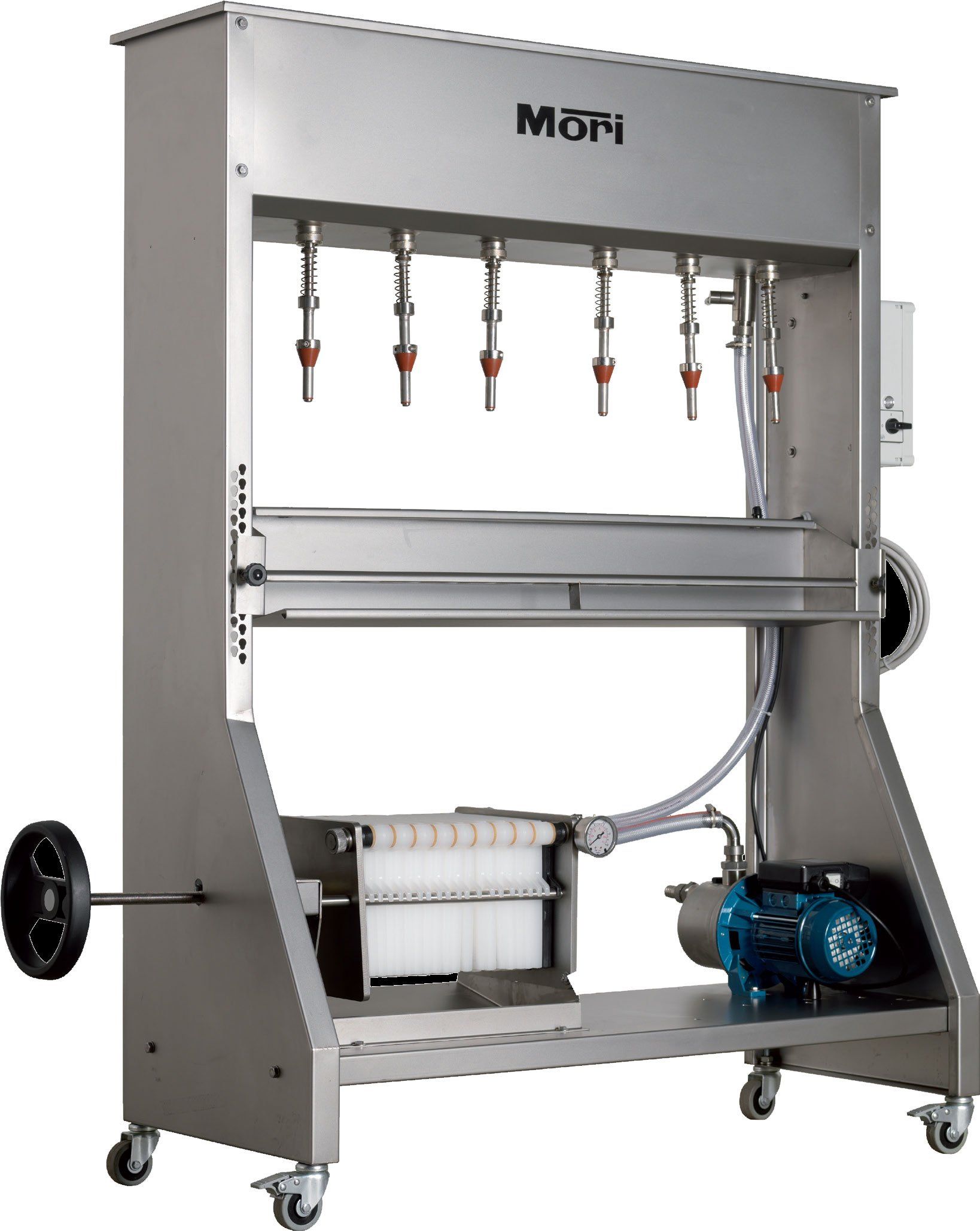

Constructed in AISI 304 stainless steel, articulated dispensers, fittings and floating in stainless steel. Easy adjustment of bottle height and filling level.
Wine bottling and packaging
Accessories: Feeding pump, electric level, microfiltration housing and 20x20 20 plate filter sheets.
| TIPO TYPE TYPE TYP TIPO |
BECCHELLI BECS NOZZLES VENTIL PICOS |
PRODUZIONE PRODUCTION PRODUCTION PRODUKTION PRODUCCION l/h |
POMPA POMPE PUMP PUMPE BOMBA |
FILTRO FILTRE FILTER FILTER FILTRO 20x20 |
DIMENSIONI DIMENSIONS DIMENSIONS MASSE MEDIDAS A - B - H mm |
PESO POIDS WEIGHT GEWICHT PESO Kg |
|---|---|---|---|---|---|---|
| RI 4 M | 4 | 480 | 780 - 410 -920 | 33 | ||
| RI 6 M | 6 | 720 | 110 - 410 - 910 | 38 | ||
| RI 4 MA | 4 | 480 | 780 - 470 - 1530 | 38 | ||
| RI 6 MA | 6 | 720 | 1100 - 470 - 1530 | 44 | ||
| RI 4 MPI | 4 | 480 | Kw 0.7- 230 V | 44 | ||
| RI 6 MPI | 6 | 720 | Kw 0.7- 230 V | 20 piastre | 50 | |
| RI 4FP 220 | 4 | 350 | Kw 0.7- 230 V | 20 piastre | 58 | |
| RI 6FP 220 | 6 | 500 | Kw 0.7- 230 V | 20 piastre | 64 |
