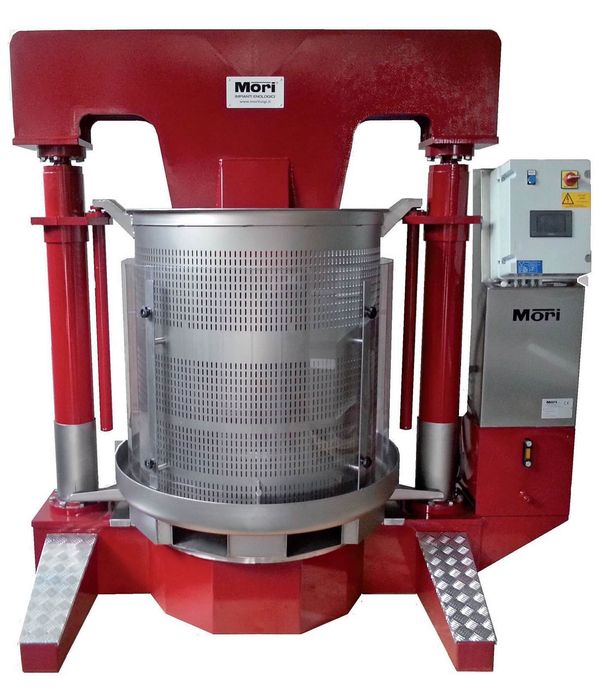

Painted steel structure with high mechanical resistance, two double-acting chromed steel pistons, pressure plate covered in stainless steel, two-speed hydraulic unit with double pump, 4.0 V. 400 kW motor, palletisable stainless steel tray and stainless steel cage. Electrical system with PLC for programming times and pressures up to 8 cycles from 20 to 180 Bar for the desired time.
TECHNICAL SPECIFICATIONS
- CAGE mm. 950x1000HT
- PISTONS mm. 2 x 130
- PRESSURE Bar. 180
- LOADING PRESSURE Ton. 40
- POWER kW. 4.0 V.400
- DIMENSIONS cm. 220 x 140 x 215HT
| GABBIA
CAGE CAGE mm. |
PISTONI
PISTONS PISTONS mm. |
PRESSIONE PRESSURE PRESSION Bar. |
PRESSIONE DI CARICO
LOAD PRESSURE PRESSION DE CHARGE Ton. |
POTENZA
POWER PUISSANCE kW. |
DIMENSIONI
DIMENSIONS DOMENSIONS cm. |
|---|---|---|---|---|---|
| 950x1000HT | 2 x 130 | 180 | 40 | 4,0 V.400 | 220 x 140 x 215HT 220 x 140 x 310HT |
