Rotary lobes

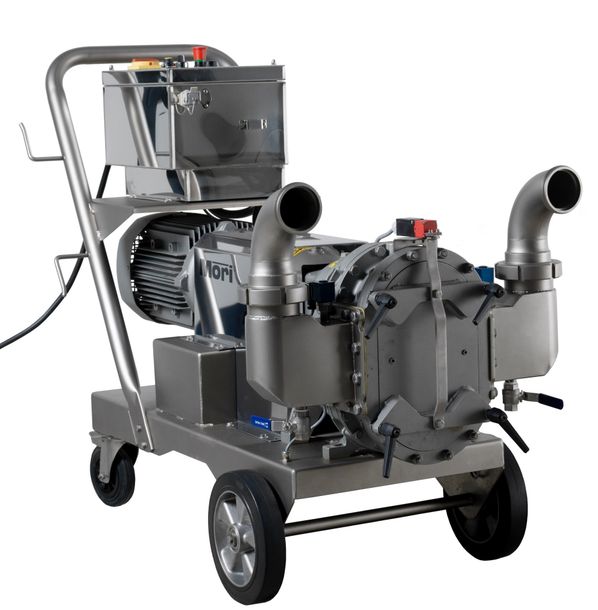

Rotary lobe pumps
LB 200 - 300 - 600

Contact us
Call now
The rotary lobe pumps of the LB series are high efficiency and low energy consumption. They act by displacement of the product, limiting turbulence as much as possible and guaranteeing a linear and progressive flow, even at high volumes. Exceptional ease of cleaning and maintenance, with the option of accessing the pump body and the transmission parts in a simple and functional way. Self-priming and useful  for dry running, equipped with adjustable inlet and outlet pressure switches. Variable flow rates through electronic inverter from 3 to 60 m3/h, electrical panel in stainless steel. Motorised delivery valves, wireless remote control with flow inversion and speed regulation are available as options.
Download PDF
Elliptical piston pumps type V
TIPO
TYPE
TYPE
TYP
TIPO
MOTORE
MOTEUR
MOTOR
MOTORLEISTUNG
MOTOR
kW - V
CORPO POMPA
CORP DE POMPE
PUMP BODY
PUMPENKORPER
CUERPO BOMBA
ROTORI
ROTORS
ROTOR
PORTATA
DEBIT
DELIVERY
FÖRDERMENGE
CAUDAL
m3/h
DIMENSIONI
DIMENSIONS
DIMENSIONS
MASSE
MEDIDAS
A - B - C mm
PESO
POIDS
WEIGHT
GEWICHT
PESO
Kg
LB 200 3,0 - 400 AISI 316 EPDM 3 - 18 520 - 1260 - 1000 200
LB 300 4,0 - 400 AISI 316 EPDM 7 - 30 520 - 1320 - 1000 230
LB 600 7,5 - 400 AISI 316 EPDM 20 - 60 620 - 1380 - 1050 280
