R Series

R series destemmers and destemmer-crushers

Series Products

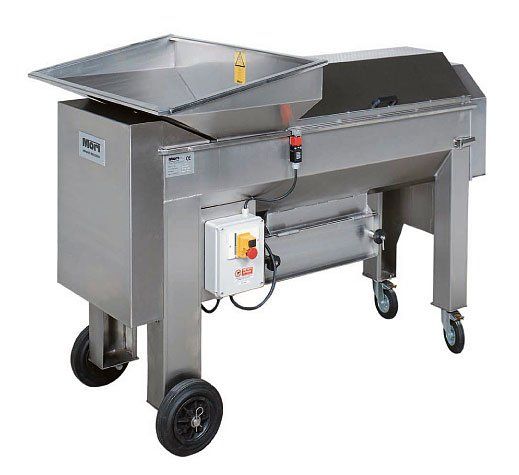

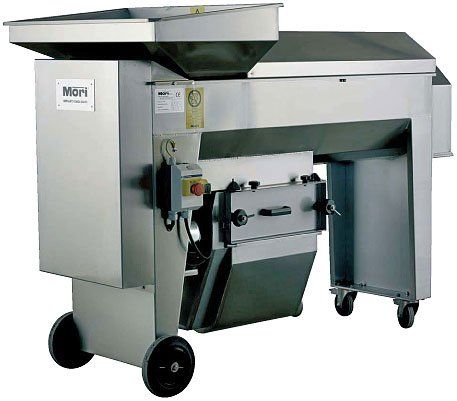

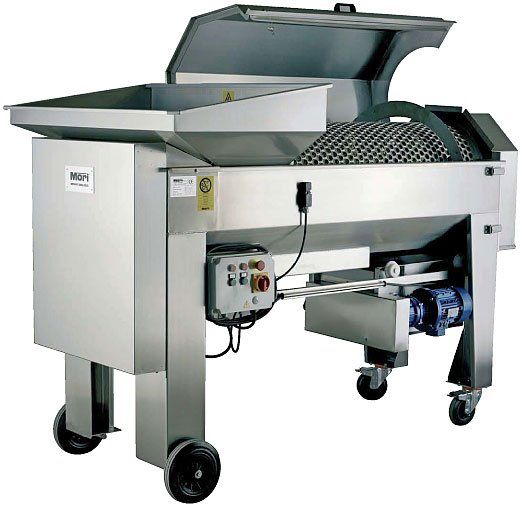

R 30 L, R 30, R 40, R 50, R 60 DESTEMMER-CRUSHERS

Made entirely of stainless steel. Made for various types of processing according to the most modern winemaking criteria.

It offers:

Direct discharge on grape and pomace pumps. Discharge into must collection tank with homogeniser for separate pump connection.

Crusher with adjustable food rubber rollers for soft pressing.

Easy to disassemble structure for perfect cleaning.

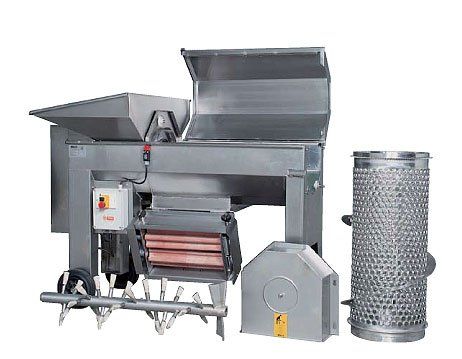

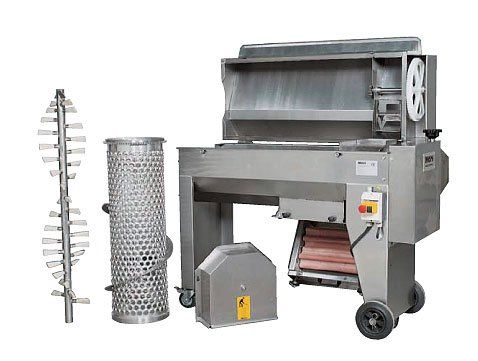

Interchangeable cage and beater according to the grape types processed.

R. 30L	HP. 2 V.380	250-500	D. 300*1000	T. 3-5
MOD.	Potenza Puissance Motor Power Leistung	Velocita battitore Vitesse Herisson Beater Speed Verstellgetriebe	Gabbia Cage Cage Kafig	Produzione Debit Hourly capacity Stundenleistung Dz.
R. 30	HP. 2 V.380	250-500	D. 300*1000	T. 3-5
R. 40	HP. 2,5 V.380	250-500	D. 400*1000	T. 4-8
R. 50	HP. 3 V.380	250-500	D. 400*1250	T. 8-12
R. 60	HP. 3+1,5 V.380	250-500	D. 500*1250	T. 12-18
